Waveguide Flange Information

Flange Types Designations



Click Flange Type to see the detaile outline drawings.


International Standard Waveguide

A Type

B Type

C Type

D Type

E Type

LD Type

UG

FAP

FAM

FAE

FBP

FBM

FBE

FCP

FCM

FDP

FDM

FEP

LFDP

LFDM

FUGP

WR2300

FDP3

FDM3

WR2100

FDP4

FDM4

WR1800

FDP5

FDM5

WR1500

FDP6

FDM6

WR1150

FDP8

FDM8

WR975

FDP9

FDM9

WR770

FDP12

FDM12

WR650

FDP14

FDM14

LFDP14

LFDM14

WR510

FDP18

FDM18

LFDP18

LFDM18

WR430

FDP22

FDM22

LFDP22

LFDM22

WR340

FDP26

FDM26

LFDP26

LFDM26

WR284

FAP32

FAM32

FAE32

FDP32

FDM32

FEP32

LFDP32

LFDM32

WR229

FAP40

FAM40

FAE40

FDP40

FDM40

FEP40

LFDP40

LFDM40

WR187

FAP48

FAM48

FAE48

FDP48

FDM48

FEP48

LFDP48

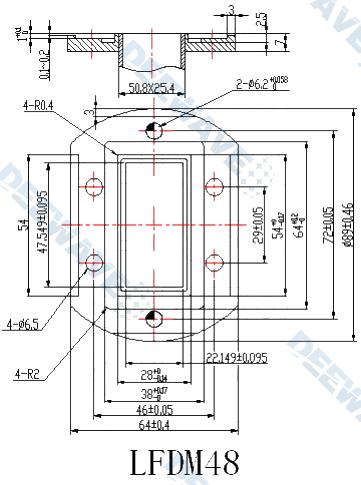

LFDM48

WR159

FAP58

FAM58

FAE58

FDP58

FDM58

FEP58

LFDP58

LFDM58

WR137

FAP70

FAM70

FAE70

FDP70

FDM70

FEP70

LFDP70

LFDM70

WR112

FBP84

FBM84

FBE84

FDP84

FDM84

FEP84

WR90

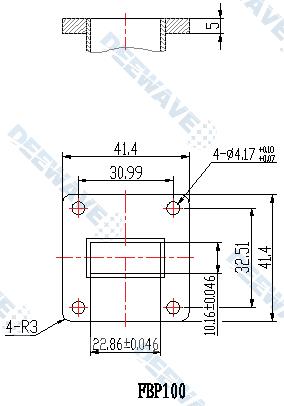

FBP100

FBM100

FBE100

FDP100

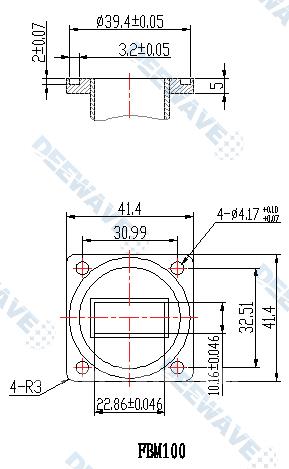

FDM100

FEP100

WR75

FBP120

FBM120

FBE120

FDP120

FDM120

WR62

FBP140

FBM140

FBE140

FDP140

FDM140

WR51

FBP180

FBM180

FBE180

FDP180

FDM180

WR42

FBP220

FBM220

FBE220

FCP220

FCM220

WR34

FBP260

FBM260

FBE260

FCP260

FCM260

WR28

FBP320

FBM320

FBE320

FCP320

FCM320

WR22

FAP400

FAM400

FCP400

FCM400

FUGP400

WR19

FAP500

FAM500

FCP500

FCM500

FUGP500

WR15

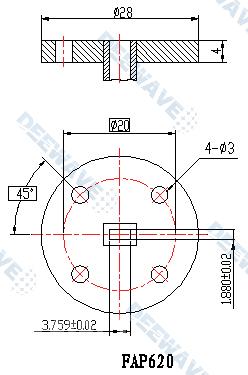

FAP620

FAM620

FUGP620

WR12

FAP740

FAM740

FUGP740

WR10

FAP900

FAM900

FUGP900



Waveguide Flange Equivalent between GB11449-1989 AND IEC Standard Flange.

GB 11449-1989

IEC Standard Flange

UG Flange

FAE

CAR

FAM

PAR

FAP

UAR

FBE

CBR

FBM

PBR

FBP

UBR

FCM

PCR

FCP

VCR

FDM

PDR

FDP

UDR

FEP

UER

FUGP400

UG-383/U

FUGP500

UG-383/U-M

FUGP620

UG-385/U

FUGP740

UG-387/U

FUGP900

UG-387/U-M
