▶ Circular and Rectangular ▶ Silicon Rubber or Conductive Rubber ▶ Custom Built Available upon Request
DEEWAVE Electronics is proud to offer quality waveguide in a flash! The waveguide gaskets are manufactured to our customer's specifications and quick delivery. All DEEWAVE waveguide gaskets are produced with the highest quality available. |
|
Circular Waveguide Gasket |
||||
|
|
|
|||
|
Part No. |
Waveguide Type |
Flange Type |
Dimension (mm) |
|
|
d |
h |
|||
|
DG284C |
WR284 (R32) |
CAR32 / PAR32 |
101.0 |
5.4 |
|
DG229C |
WR229 (R40) |
CAR40 / PAR40 |
82.0 |
5.4 |
|
DG187C |
WR187 (R48) |
CAR48 / PAR48 |
68.5 |
3.5 |
|
DG159C |
WR159 (R58) |
CAR58 / PAR58 |
60.0 |
3.5 |
|
DG137C |
WR137 (R70) |
CAR70 / PAR70 |
53.0 |
3.5 |
|
DG112C |
WR112 (R84) |
CBR84 / PBR84 |
40.0 |
2.6 |
|
DG90C |
WR90 (R100) |
CBR100 / PBR100 |
33.0 |
2.6 |
|
DG75C |
WR75 (R120) |
CBR120 / PBR120 |
28.0 |
2.6 |
|
DG62C |
WR62 (R140) |
CBR140 / PBR140 |
23.5 |
2.6 |
|
DG51C |
WR51 (R180) |
CBR180 / PBR180 |
20.0 |
2.4 |
|
DG42C |
WR42 (R220) |
CBR220 / PBR220 |
15.5 |
1.8 |
|
DG34C |
WR34 (R260) |
CBR260 / PBR260 |
14.0 |
1.8 |
|
DG28C |
WR28 (R320) |
CBR320 / PBR320 |
10.5 |
1.8 |
|
DG22C |
WR22 (R400) |
PAR400 |
10.8 |
1.8 |
|
DG19C |
WR19 (R500) |
PAR500 |
10.8 |
1.8 |
|
DG15C |
WR15 (R620) |
PAR620 |
10.8 |
1.8 |
|
DG12C |
WR12 (R740) |
PAR740 |
10.8 |
1.8 |
|
DG10C |
WR10 (R900) |
PAR900 |
10.8 |
1.8 |
|

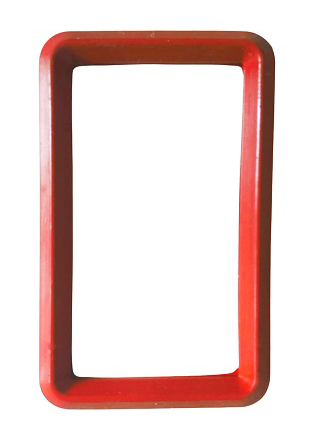

Rectangular Waveguide Gasket |
||||
|
|
|
|||
|
Part No. |
Waveguide Type |
Flange Type |
Dimension (mm) |
|||
|
a |
b |
c |
h |
|||
|
DG650R |
WR650 (R14) |
PDR14 |
174.8 |
92.2 |
7.3 |
5.0 |
|
DG510R |
WR510 (R18) |
PDR18 |
136.0 |
72.0 |
7.3 |
5.0 |
|
DG430R |
WR430 (R22) |
PDR22 |
117.0 |
63.0 |
7.3 |
5.0 |
|
DG340R |
WR340 (R26) |
PDR26 |
94.0 |
51.5 |
7.3 |
5.0 |
|
DG284R |
WR284 (R32) |
PDR32 |
79.4 |
41.3 |
4.8 |
3.5 |
|
DG229R |
WR229 (R40) |
PDR40 |
63.0 |
34.5 |
4.8 |
3.5 |
|
DG187R |
WR187 (R48) |
PDR48 |
53.9 |
28.5 |
4.8 |
3.5 |
|
DG159R |
WR159 (R58) |
PDR58 |
46.7 |
26.5 |
4.8 |
3.5 |
|
DG137R |
WR137 (R70) |
PDR70 |
41.2 |
22.2 |
3.6 |
3.5 |
|
DG112R |
WR112 (R84) |
PDR84 |
34.9 |
19.0 |
3.6 |
3.5 |
|
DG90R |
WR90 (R100) |
PDR100 |
28.6 |
15.9 |
3.6 |
3.5 |
|
DG75R |
WR75 (R120) |
PDR120 |
24.5 |
15.0 |
3.6 |
3.5 |
|
DG62R |
WR62 (R140) |
PDR140 |
20.5 |
12.5 |
3.6 |
3.5 |
|
DG51R |
WR51 (R180) |
PDR180 |
17.8 |
11.4 |
3.6 |
3.5 |
