▶ DC-40 GHz Performance Frequency ▶ Wireless, Space and Commercial Applications ▶ Low Insertion Loss, High Isolation, Low VSWR ▶ Different Flanges for the Waveguide ▶ Custom Built Available upon Request

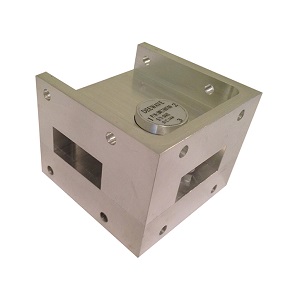

DEEWAVE Electronics offers quality waveguide circulators in a flash! The circulators are manufactured to our customer's specifications and quick delivery. All DEEWAVE waveguide circulators are produced with the highest quality available. |
|
Commercial Series |
|||||||
|
Part Number |
Frequency Range (GHz) |
Ins. Loss (dB Max) |
Isolation (dB Min) |
VSWR (Max) |
Forward Power (W) |
Conn. type |
Draw. |
|
DWC137F5459 |
5.4-5.9 |
0.30 |
23 |
1.15 |
100 |
WR137 |
|
|
DWC137F6077 |
6-7.7 |
0.40 |
18 |
1.30 |
100 |
WR137 |
|
|
DWC137F7080 |
7-8 |
0.35 |
20 |
1.20 |
100 |
WR137 |
|
|
DWC112F7284 |
7.2-8.4 |
0.30 |
21 |
1.20 |
100 |
WR112 |
|
|
DWC112F8587 |
8.5-8.7 |
0.25 |
25 |
1.12 |
100 |
WR112 |
|
|
DWC90F812 |
8-12 |
0.50 |
18 |
1.35 |
100 |
WR90 |
|
|
DWC90F8511 |
8.5-11 |
0.50 |
18 |
1.30 |
100 |
WR90 |
|
|
DWC90F10124 |
10-12.4 |
0.35 |
20 |
1.25 |
100 |
WR90 |
|
|
DWC75F10107 |
10-10.7 |
0.50 |
23 |
1.15 |
100 |
WR75 |
|
|
DWC75F11124 |
11-12.4 |
0.35 |
20 |
1.20 |
100 |
WR75 |
|
|
DWC75F124138 |
12.4-13.8 |
0.35 |
20 |
1.20 |
100 |
WR75 |
|
|
DWC75F1415 |
14-15 |
0.30 |
23 |
1.15 |
100 |
WR75 |
|
|
DWC62F145155 |
14.5-15.5 |
0.30 |
23 |
1.15 |
50 |
WR62 |
|
|
DWC62F1518 |
15-18 |
0.35 |
20 |
1.20 |
50 |
WR62 |
|
|
DWC62F165175 |
16.5-17.5 |
0.30 |
23 |
1.15 |
50 |
WR62 |
|
|
DWC51F1718 |
17-18 |
0.40 |
20 |
1.25 |
50 |
WR51 |
|
|
DWC51F17215 |
17-21.5 |
0.50 |
17 |
1.35 |
50 |
WR51 |
|
|
DWC42F245265 |
24.5-26.5 |
0.40 |
20 |
1.25 |
50 |
WR42 |
|
|
DWC28F265295 |
26.5-29.5 |
0.40 |
18 |
1.35 |
20 |
WR28 |
|
|
DWC28F27295 |
27-29.5 |
0.40 |
20 |
1.25 |
20 |
WR28 |
|
|
DWC28F318334 |
31.8-33.4 |
0.30 |
22 |
1.20 |
20 |
WR28 |
|
|
DWC28F3536 |
35-36 |
0.30 |
23 |
1.20 |
20 |
WR28 |
|
