Waveguide Adapters and Loads Up to 110 GHz
Apr 16, 2026 by DEEWAVE
DEEWAVE released high frequency waveguide to coaxial adapters and waveguide loads, the frequency can up to 110GHz (W band), these components feature stable performance, low loss, and high precision, which are crucial to ensuring the normal operation of high-frequency systems.

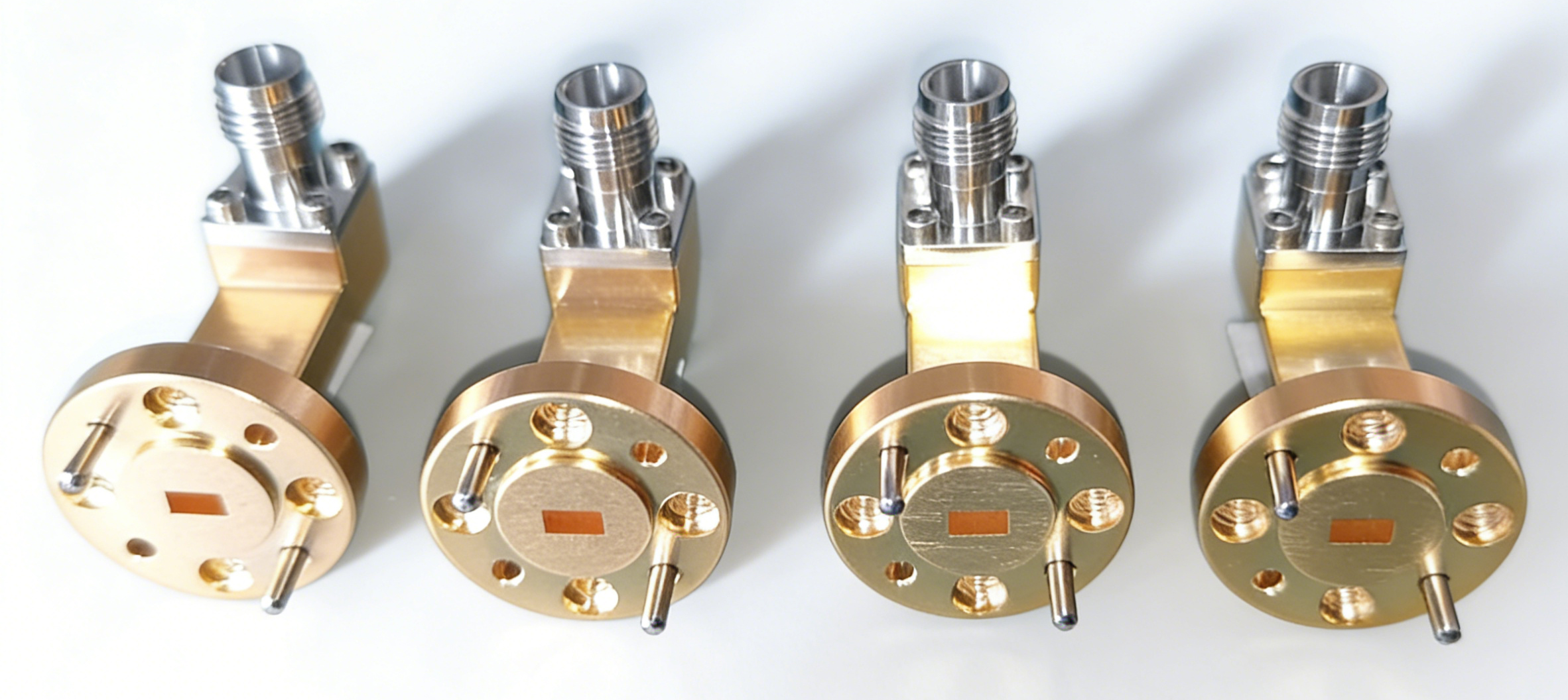

High-frequency waveguide adapters, typically adopting the standard WR10 (BJ900) waveguide with UG-387/U (FUGP900) flanges, mainly realize the conversion between waveguide and coaxial (1.0mm connector). Key performance indicators include VSWR ≤1.35, insertion loss ≤1dB, and average power handling up to 1W.
High-frequency waveguide loads are mainly used for system termination, calibration, and reflection suppression, playing a vital role in improving system stability. With the same WR10 standard interface, their typical parameters include VSWR ≤1.10, average power handling of 0.5W, and operating temperature ranging from -55℃ to +100℃. Made of gold-plated copper, they effectively reduce signal loss and ensure reliable performance in harsh high-frequency environments.
When selecting high-frequency waveguide adapters and loads, it is necessary to focus on VSWR requirements and power handling capacity, so as to match different application scenarios and achieve optimal system performance.
For the high frequency waveguide WR22/WR19/WR15/WR12/WR10 to coaxial adapter, you can visit Here.
And for the high frequency load, you can visit Here.
