▶ 1.13 - 40.00 GHz Performance Frequency ▶ TYPICAL VSWR 1.05 ▶ TYPICAL INSERTION LOSS 0.2 dB ▶ Numerous Flange Configurations available ▶ Aluminum or Copper Waveguide Available ▶ Custom lengths

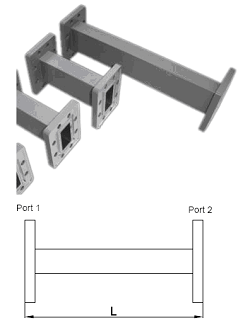

DEEWAVE Electronics is proud to offer quality waveguide in a flash! The waveguide straight sections are manufactured to our customer's specifications and quick delivery. All DEEWAVE waveguide straight sections are produced with the highest quality available. |
|
Model No. |
Frequency Range (GHz) |
VSWR (Max.) |
Waveguide Type |
Flange Type |
Draw. |
|
DWS650-L |
1.13-1.73 |
1.05 |
WR650 |
UDR/PDR |
|
|
DWS510-L |
1.45-2.20 |
1.05 |
WR510 |
UDR/PDR |
|
|
DWS430-L |
1.72-2.61 |
1.05 |
WR430 |
UDR/PDR |
|
|
DWS340-L |
2.17-3.30 |
1.05 |
WR340 |
UDR/PDR |
|
|
DWS284-L |
2.60-3.95 |
1.05 |
WR284 |
UDR/PDR |
|
|
DWS229-L |
3.22-4.90 |
1.05 |
WR229 |
UDR/PDR |
|
|
DWS187-L |
3.94-5.99 |
1.05 |
WR187 |
UDR/PDR |
|
|
DWS159-L |
4.64-7.05 |
1.05 |
WR159 |
UDR/PDR |
|
|
DWS137-L |
5.38-8.17 |
1.05 |
WR137 |
UDR/PDR |
|
|
DWS112-L |
6.57-9.99 |
1.05 |
WR112 |
UBR/PBR/CBR |
|
|
DWS90-L |
8.20-12.40 |
1.05 |
WR90 |
UBR/PBR/CBR |
|
|
DWS75-L |
9.84-15.0 |
1.05 |
WR75 |
UBR/PBR/CBR |
|
|
DWS62-L |
11.9-18.0 |
1.05 |
WR62 |
UBR/PBR/CBR |
|
|
DWS51-L |
14.5-22.0 |
1.05 |
WR51 |
UBR/PBR/CBR |
|
|
DWS42-L |
17.6-26.7 |
1.05 |
WR42 |
UBR/PBR/CBR |
|
|
DWS34-L |
21.7-33.0 |
1.05 |
WR34 |
UBR/PBR/CBR |
|
|
DWS28-L |
26.5-40.0 |
1.05 |
WR28 |
UBR/PBR/CBR |
|
